ROVs - Remotely Operated Vehicles by MarineNav
MarineNav underwater ROV systems are BUILT NORTH ATLANTIC TOUGH and TRUSTED EVERYWHERE.
Unparalleled customer support and expertise ensure the success of every project
MarineNav ROV systems are protected by a Peace of Mind Guarantee and an extensive two-year limited warranty.
MarineNav Oceanus Mini-Lite
Entry-level ROV system...with room to grow!
DEPTH RATING: 305m (1000 ft)
DRY WEIGHT: 10.8 kg (23.8 lb)
MAXIMUM SPEED: 4kts
BASE PRICE: Starting at $19,995
LATERAL AXIS ROV MOVEMENT - Unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability.
POWER OVER TETHER - No onboard battery means virtually unlimited dive times.
STUNNING IMAGE CAPTURES - 1080P HD video camera with +/- 120° tilt functionality. 2X 1500 LUMEN FRONT LIGHTS with adjustable brightness.

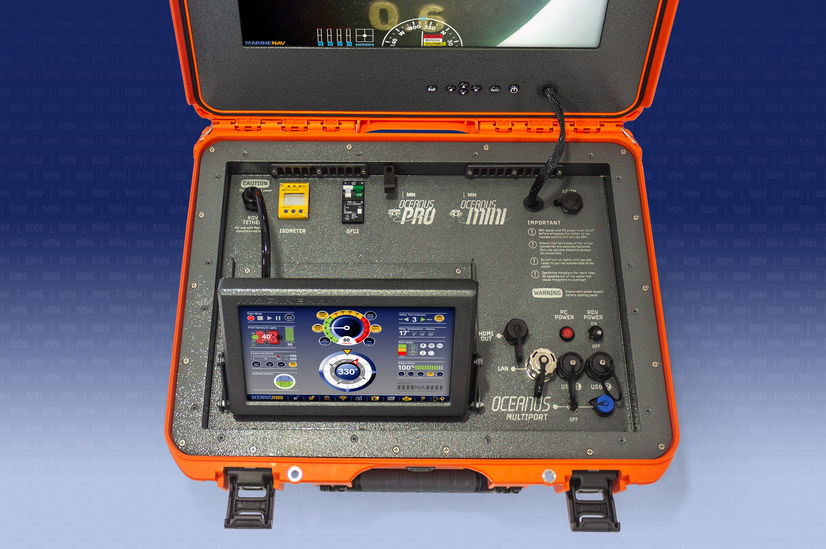

IP-RATED TOPSIDE UNIT - 64GB Solid state drive tablet stores hours of content, remove tablet to download data to other devices.
TOUCH-SENSITIVE USER INTERFACE - Displays all ROV controls in easily viewed modules.
BUILT IN WIFI - Wireless comms between tablet and topside case.
OPTIONS and UPGRADES - Choose from Oceanus Mini/Pro joystick control system and many RS485 ROV accessories.
OCEANUS MINI ROV SYSTEM
MarineNav Oceanus Mini
Small profile...BIG performance! Capable of fitting in a 12" diameter pipe.
Loaded with high-end features, all found in a cost-efficient package.
DEPTH RATING: 305m (1000 ft)
DRY WEIGHT: 10.8 kg (23.8 lb)
MAXIMUM SPEED: 4kts
BASE PRICE: Starting at $29,994
OCEANUS JOYSTICK HANDHELD CONTROLLER - Marine-grade aluminum with 12 integrated function keys and a hall-effect joystick to control crucial ROV functions.
LATERAL AXIS ROV MOVEMENT - Unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability.
POWER OVER TETHER - No onboard battery means virtually unlimited dive times.
STUNNING IMAGE CAPTURES - 1080P HD video camera with +/- 120° tilt functionality. 2X 1500 LUMEN FRONT LIGHTS with adjustable brightness
OCEANUS MULTIPORT COMMUNICATION SYSTEM - Allows rapid integration of third-party accessories, software and external processors
IP-RATED TOPSIDE UNIT - Built-in 500GB solid state drive stores hours of content,
WIDE-SCREEN VIDEO DISPLAY
18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.
HDMI VIDEO OUTPUT - Stream onboard camera data to an external HD monitor via topside HDMI video out port.
REAL-TIME ON-SCREEN DISPLAY - Data includes recording time, voltage, water temperature, depth, date/time stamp, and GPS coordinates. Heading and attitude are overlaid or embedded with video. Custom user input lines and logo display.
WIRELESS BROADCASTING - Share streaming video to multiple web-enabled devices via a simple built-in interface.
OPTIONS and UPGRADES - Compatible with Oceanus Pro topside control system and accessories.
OCEANUS PRO ROV SYSTEM
MarineNav Oceanus Pro
Our most popular ROV system, capable of deep-dive missions, widely used by commerical industry and government agencies for its durability, versatility, and value.
Six vectorized thrusters provide powerful vertical & horizontal thrust performance and top speed up to 6kts.
Auto Depth, Heading Hold, and ROV Stabilize modes are all standard features
DEPTH RATING: 305m - 400m
DRY WEIGHT: 17.9kg (39.5 lb)
MAXIMUM SPEED: 6kts
BASE PRICE: Starting at $39,594
OCEANUS JOYSTICK HANDHELD CONTROLLER - Marine-grade aluminum with 12 integrated function keys and a hall-effect joystick to control crucial ROV functions.
LATERAL AXIS ROV MOVEMENT - Unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability.
POWER OVER TETHER - No onboard battery means virtually unlimited dive times.
STUNNING IMAGE CAPTURES - 1080P HD video camera with +/- 180° tilt functionality. 4X 1500 LUMEN FRONT LIGHTS with adjustable brightness. 120° field of view and camera focus range housing dome to infinity with manual control.
OCEANUS MULTIPORT COMMUNICATION SYSTEM - Allows rapid integration of third-party accessories, software and external processors.
OPTIONAL: FLEET MANAGEMENT SUITE
Monitor the status and health of the ROV remotely for complete asset management of one or multiple systems.
IP-RATED TOPSIDE UNIT - Built-in 500GB solid state drive stores hours of content,
HDMI VIDEO OUTPUT - Stream onboard camera data to an external HD monitor via topside HDMI video out port.
REAL-TIME ON-SCREEN DISPLAY - Data includes recording time, voltage, water temperature, depth, date/time stamp, and GPS coordinates. Heading and attitude are overlaid or embedded with video. Custom user input lines and logo display.
WIRELESS BROADCASTING - Share streaming video to multiple web-enabled devices via a simple built-in interface.
WIDE-SCREEN VIDEO DISPLAY - 18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.
TOUCH-SENSITIVE USER INTERFACE
Flight Control System UI is a touch-sensitive array of command modules to display all essential ROV functions on a secondary 10.1-inch TFT touch active matrix panel.
FLEXIBLE ATTACHMENT OPTIONS
Three built-in aux ports for wide range of MarineNav and third-party ROV accessories. (1 x ethernet, 2 x RS485 / Manipulator / 12V / 24 DC / aux camera).
OCEANUS ULTIMATE ROV SYSTEM
MarineNav Oceanus Ultimate
Unique eight-vectorized thruster configuration enables a wide range of ROV motion including sustained pitch and roll maneuverability for navigating restrictive areas.
Auto Stabilize functionality locks ROV position during critical dive missions.
Built-in autopilot follows preset vector-based waypoints with optional integrated DVL.
DEPTH RATING: 305m (1000') Upgradeable to 500m
DRY WEIGHT: 30.2kg (66.7 lb)
MAXIMUM SPEED: 4kts
BASE PRICE: Starting at $95,994
LATERAL AXIS ROV MOVEMENT - Unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability. Eight high-output thruster engines provide powerful ROV thrust in adverse conditions.
OCEANUS JOYSTICK HANDHELD CONTROLLER - Marine-grade aluminum with 12 integrated function keys and a hall-effect joystick to control crucial ROV functions.
POWER OVER TETHER - No onboard battery means virtually unlimited dive times.
8 TOTAL LIGHTS W/ 6 X 1500 LUMEN FRONT LIGHTS
The Oceanus Ultimate features six front-facing 1500 Lumen lights and two rear-facing 1500 Lumen lights.
Control light brightness via topside Flight Control System software or through the Oceanus Ultimate hand controller .
STUNNING IMAGE CAPTURES - Front and rear-facing 1080P HD camera systems. Toggle from front to rear view cameras with simple touch commands via opside Flight Control System software or using Oceanus Ultimate hand controller.
LARGE PAYLOAD CAPACITY AND LIFTING POWER
Eight powerful vectorized thrusters provide up to 8 kg (17.6 lb) of ROV lifting power.
FULL PITCH AND ROLL FUNCTION CONTROL FUNCTION
Joystick controls all directional movements of the ROV, including sustained lateral movement and sustained pitch and roll maneuverability.
OCEANUS MULTIPORT COMMUNICATION SYSTEM - Allows rapid integration of third-party accessories, software and external processors.
OPTIONAL DVL INTEGRATION UPGRADE
Allows position hold and semi-autonomous use.
1 TB IP-RATED TOPSIDE UNIT - Built-in solid state drive stores hours of content,
HDMI VIDEO OUTPUT - Stream onboard camera data to an external HD monitor via topside HDMI video out port.
REAL-TIME ON-SCREEN DISPLAY - Data includes recording time, voltage, water temperature, depth, date/time stamp, and GPS coordinates. Heading and attitude are overlaid or embedded with video. Custom user input lines and logo display.
WIRELESS BROADCASTING - Share streaming video to multiple web-enabled devices via a simple built-in interface.
WIDE-SCREEN VIDEO DISPLAY - 18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.
TOUCH-SENSITIVE USER INTERFACE
Flight Control System UI is a touch-sensitive array of command modules to display all essential ROV functions on a secondary 10.1-inch TFT touch active matrix panel.
FLEXIBLE ATTACHMENT OPTIONS
Four built-in aux ports for wide range of MarineNav and third-party ROV accessories. Supporting: Ethernet / Spare pair / Manipulator / USB / 12V / 24V DC.
OPTIONAL: FLEET MANAGEMENT SUITEMonitor the status and health of the ROV remotely for complete asset management of one or multiple systems.
COMPREHENSIVE COVERAGE
MarineNav's "Peace of Mind Guarantee" and 2-year limited warranty provide extended coverage on your purchase.*
