Quadroin by EvoLogics
Novel AUV with low-drag bionic design
Quadroin KEY FEATURES
Novel AUV with low-drag bionic design
EvoLogics Quadroin is an autonomous underwater vehicle with low-drag bionic design. Based on years of research, the AUV's shape and contour of a penguin-like spindle maximize its hydrodynamic performance.
![EvoLogics Pinguin.jpg](https://static.wixstatic.com/media/1dacc6_30bec7665be44066966cfc5e7964f539~mv2.jpg/v1/fill/w_98,h_66,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/EvoLogics%20Pinguin.jpg)
![EvoLogics Pinguin 4.jpg](https://static.wixstatic.com/media/1dacc6_7046d4b6c2604228aff31ae6a236bef8~mv2.jpg/v1/fill/w_98,h_66,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/EvoLogics%20Pinguin%204.jpg)
-
Fast and maneuverable at up to 5 m/s (10 kts.)
-
Mission duration 6-8 hours
-

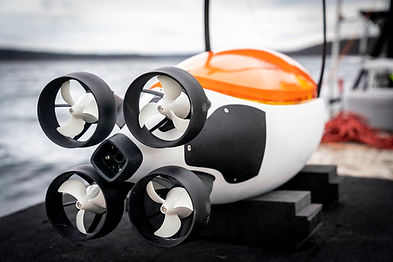

The propulsion system includes 4 horizontal thrusters in X-shaped confi guration
-
Combined collapsible antenna, surface communication module with Wifi , 868 MHz radio and GNSS
-
Built-in S2C M 18/34 "mini" modem with streamlined antenna cover for underwater communication and positioning
-
Payload capacity for various sensors and instruments
-
Large surface footprint, position and high-power flash lights for easy localization and recovery
-
Measure ocean conditions: temperature, pressure, oxygen, conductivity and fluorescence
-
Operate in the study area over extended periods without returning to the surface
-
Swarm technology to profile the water column vertically
-
Collect geo-referenced data on the physical water parameters at different depth horizons
-
Data collection in ocean eddies
-
Repositionable LBL baseline with seafloor anchoring
